Our manufacuring facilities are certified ISO 9001:2000 and licensed class1 pressure vessel manufactures by Lloyd's with over 3,500 units of boilers

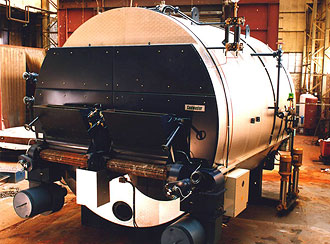

COALMASTER MCC SOLID FUEL-FIRED BOILER


In an age of ever increasing oil prices, the MCC offers customers an economical and viable long term alternative where coal is available as a fuel. Incorporating the time-tested and proven Triumph Chain Grate stoker, the MCC is a fire-tube packaged boiler that is suitable for generating either hot water or steam under the most demanding conditions.

KEY FEATURES
* Designed and manufactured to the latest international standards (BS2790)
* Operating pressures of either 150psig or 250psig
* Typical working efficiency in excess of 80%
* Generous chain grate surface allows efficient combustion and the ability to burn either high grade or low grade coals.
* Full automated operation provided for control of Triumph Chain Grate Stoker, steam pressure and for failsafe operation
* Advanced emissions control system minimising environmental emissions
* Minimal consumption of electricity for electrical components

http://plasma-energy.co.th/images/stories//product/boiler/boimass/coalmaster-mcc/mccpic1_lg.jpghttp://plasma-energy.co.th/images/stories//product/boiler/boimass/coalmaster-mcc/mccpic2_lg.jpg

TYPICAL INDUSTRIAL APPLICATIONS

Models Steam Capacity
lb/hr
(F&A 212ºF)
Kg/hr
(F&A 100ºC)
kw
MCC500
MCC600
MCC700
MCC800
MCC900
MCC1000
MCC1100
MCC1200
MCC1300
MCC1400
MCC1500
MCC1600
5000
6000
7000
8000
9000
10000
11000
12000
13000
14000
15000
16000
2268
2722
3175
3629
4082
4536
4990
5443
5897
6350
6804
7257
1422
1707
1991
2276
2560
2845
3129
3413
3698
3982
4267
4551

* Food and beverage
* Oil and gas
* Biodiesel processing
* Textiles
* Edible oil refineries
* Packaging

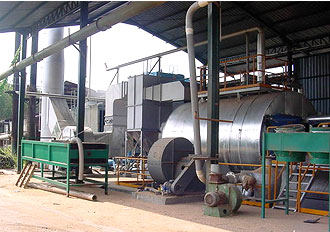

TITAN MCH SOLID FUEL-FIRED BOILER


Combining the best of both worlds, the Titan MCH is a horizontal-combination type boiler that incorporates a fire-tube main body and water-tube furnace section. This allows for very quick site installation and commissioning coupled with reduced installation costs.

The Titan MCH is designed to burn a wide variety of biomass fuels as well as coal and hence is the ideal solution for customers that require large capacity steam output at an affordable cost.

KEY FEATURES
* Designed and manufactured to the latest international standards (BS2790 & BS1113)
* Suitable for burning a wide range of biomass fuels such as palm shells/fibres, wood waste, coconut fibres etc as well as coal
* Multi-tubular fire-tube section allows for high thermal efficiency hence minimising fuel consumption
* Designed for complete access to furnace and combustion chamber, and with adequate manholes and handholes, this allows for convenient visual inspection, cleaning and maintenance
* Full automated operation provided for control of Triumph Chain Grate Stoker, steam pressure and for failsafe operation
* Advanced emissions control system minimising environmental emissions

http://plasma-energy.co.th/images/stories//product/boiler/boimass/titan-mch/mchpic1_lg.jpghttp://plasma-energy.co.th/images/stories//product/boiler/boimass/titan-mch/mchpic2_lg.jpghttp://plasma-energy.co.th/images/stories//product/boiler/boimass/titan-mch/mchpic3_lg.jpg


TYPICAL INDUSTRIAL APPLICATIONS

Models Steam Capacity
Kg/hr lb/hr
(F&A 212ºF)
kw
MCH5
MCH6
MCH8
MCH10
MCH12
MCH15
5000
6000
8000
10000
12000
15000
11023
13228
17637
22046
26455
33069
3134
3761
5015
6269
7523
9403

* Palm oil mills
* Paper and pulp
* Wood processing
* Power generation
* Rubber processing

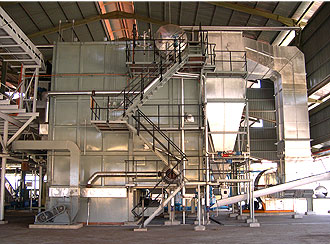

TITAN BD SOLID FUEL-FIRED BOILER


The Titan BD represents our solution to efficient and reliable generation of steam and power from biomass fuels. Upwards in capacity of up to 60tons/hr, the Titan BD has proven itself countless times under the most rigorous and harsh operating condition as a reliable and robust boiler.

Engineered and designed with the customers’ needs and expectations in mind, the Titan BD can accommodate high fluctuating loads, supply high quality steam and cope with a variety of biomass fuels.

KEY FEATURES
* Designed and manufactured to the latest international standards (BS1113)
* Suitable for burning a wide range of biomass fuels such as palm shells/fibres/empty fruit bunches, wood waste, coconut fibres etc as well as coal
* Adopts a 3-stage approach to maximising steam purity and dryness of as high as 99.5%
* Boiler assembly contains water volume larger than industry standards hence allowing it to cope with fluctuating steam demand
* Large furnace volume to optimise residence time of combusting fuels and to accommodate easy and convenient maintenance
* Combustion grates are high grade cast iron to cope with harsh biomass fuels and to maximise operating life.

http://plasma-energy.co.th/images/stories//product/boiler/boimass/titan-bd/bdpic1_lg.jpghttp://plasma-energy.co.th/images/stories//product/boiler/boimass/titan-bd/bdpic2_lg.jpghttp://plasma-energy.co.th/images/stories//product/boiler/boimass/titan-bd/bdpic3_lg.jpg

TYPICAL INDUSTRIAL APPLICATIONS

Models Steam Capacity
Kg/hr lb/hr
kw
BD46
BD56
BD66
BD76
BD91
BD101
BD111
BD121
BD146
15000
20000
25000
30000
35000
40000
45000
50000
60000
33069
44092
55115
66138
77160
88183
99206
110229
132276
10450
13934
17417
20901
24384
27868
31351
34835
41801

* Palm oil mills
* Power generation
* Paper and pulp
* Rubber processing
* Wood processing
